Migrating to BricsCAD: Customise Your User Interface

In today’s fast-paced design environment, having a customised CAD interface can significantly enhance productivity and streamline workflows. Whether you’re an architect, engineer, draftsman, or designer, tailoring the user interface (UI) to your specific needs can save time and reduce frustration. This guide will walk you through the essential steps to customise your BricsCAD interface effectively.

Step 1: Understand the Benefits of Customisation

Customising your BricsCAD interface provides several advantages:

• Increased Productivity: By creating shortcuts, toolbars, and menus tailored to your workflow, you minimize time spent navigating the software.
• Enhanced User Experience: Adjusting color schemes and layouts can make the work environment more intuitive and comfortable.
• Adaptability to Industry Needs: Customisation allows you to integrate specific tools and plugins relevant to your industry.
• Improved Learning Curve: A simplified interface can help new users become productive more quickly.
• Accessibility Enhancements: Custom interfaces can be adapted for users with disabilities, ensuring a more inclusive experience.

Step 2: Migrating Your Existing CUI File

If you have an existing CUI (Custom User Interface) file from another CAD software, BricsCAD allows you to import it easily. Follow these steps:

1. Open BricsCAD and launch the application.

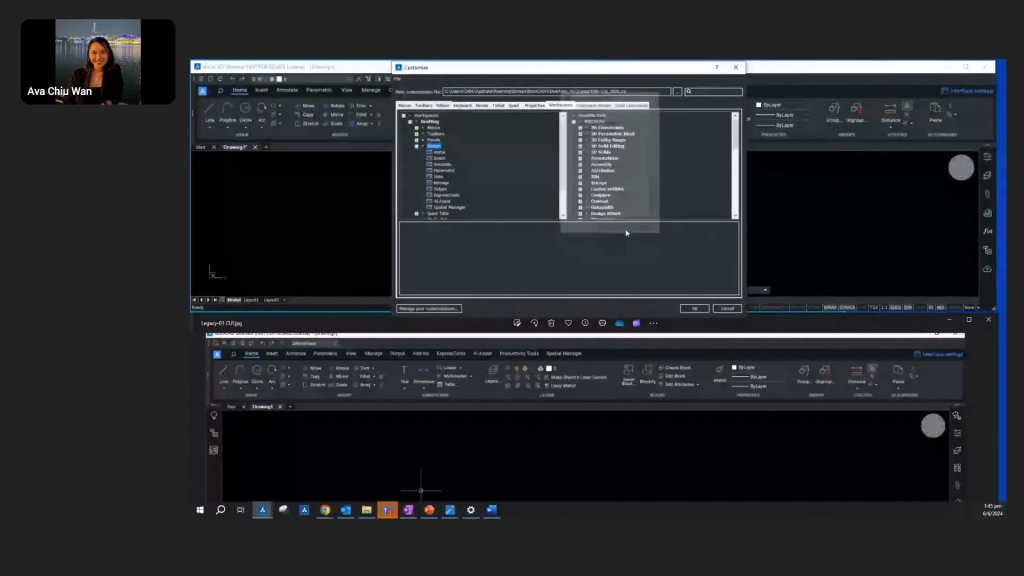

2. Access the CUI dialog box by typing “CUI” in the command line.
3. Navigate to the location where your existing CUI file is stored. Typically, this is in your user directory under AppData.
4. Paste your CUI file into the correct folder, which can be found at: C:\Users\[YourUsername]\AppData\Roaming\Bricsys\BricsCAD\[Version]\[Language]\Support\.
5. Load the CUI file by selecting it from the dialog box and clicking “Load.”

Step 3: Customising Your Ribbon and Workspace

Once your CUI file is loaded, you can start customising your ribbon and workspace:

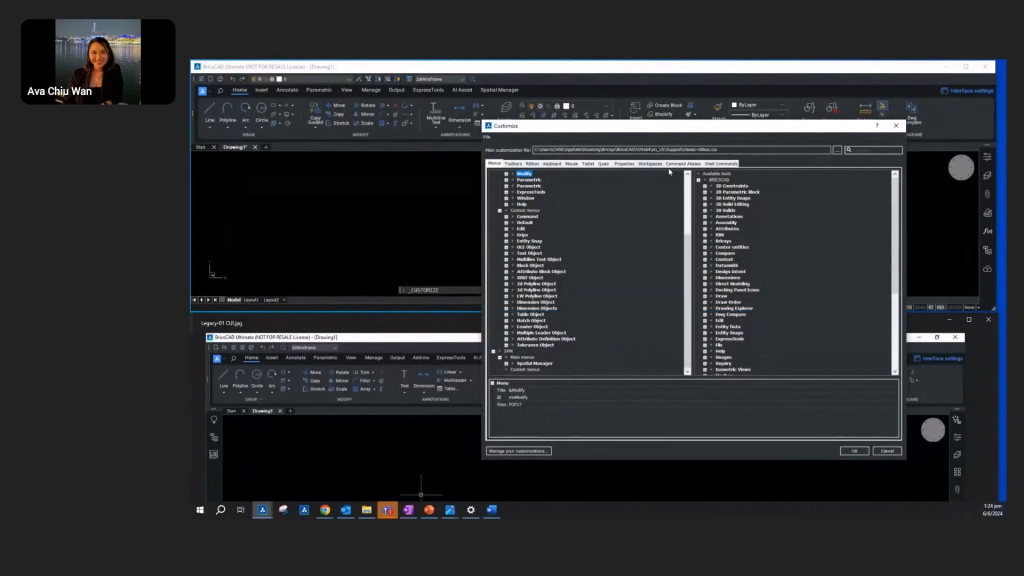

1. Click on the “Customise” button in the CUI dialog box.
2. Explore the “Workspace” tab to view your current ribbon settings.
3. You can add or rearrange buttons, change button behaviors, and create new tabs as needed.
4. For example, to add a new button, find the relevant command in the tools pane and drag it to your desired location in the ribbon.

Step 4: Modifying Command Aliases and Shortcuts

Customising command aliases can significantly enhance your workflow efficiency:

1. In the CUI dialog box, navigate to the “Command Aliases” tab.
2. To add a new alias, click “Add” and enter your preferred alias and the corresponding command.
3. Ensure that your new alias does not conflict with existing aliases. If it does, you will receive a prompt to choose another name.

Step 5: Customising Mouse Click Behavior

BricsCAD allows you to customise how mouse clicks behave, enhancing your interaction with the software:

1. Open the CUI dialog box and navigate to the “Mouse” tab.
2. Here, you can assign commands to activate on different mouse click types, such as single click, shift-click, or control-click.

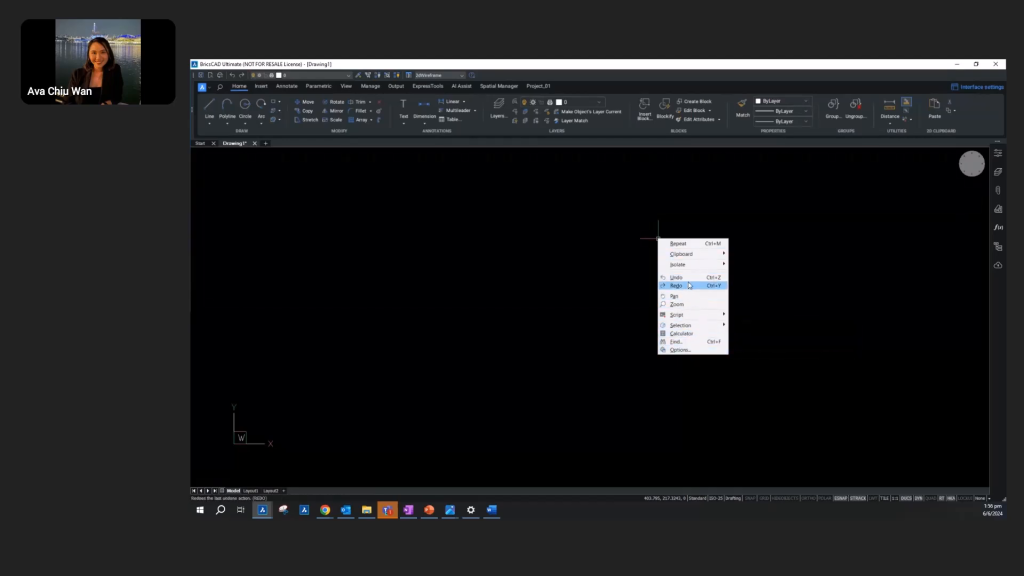

3. For right-click behavior, you can choose to enable the quad menu or revert to traditional right-click functionality.

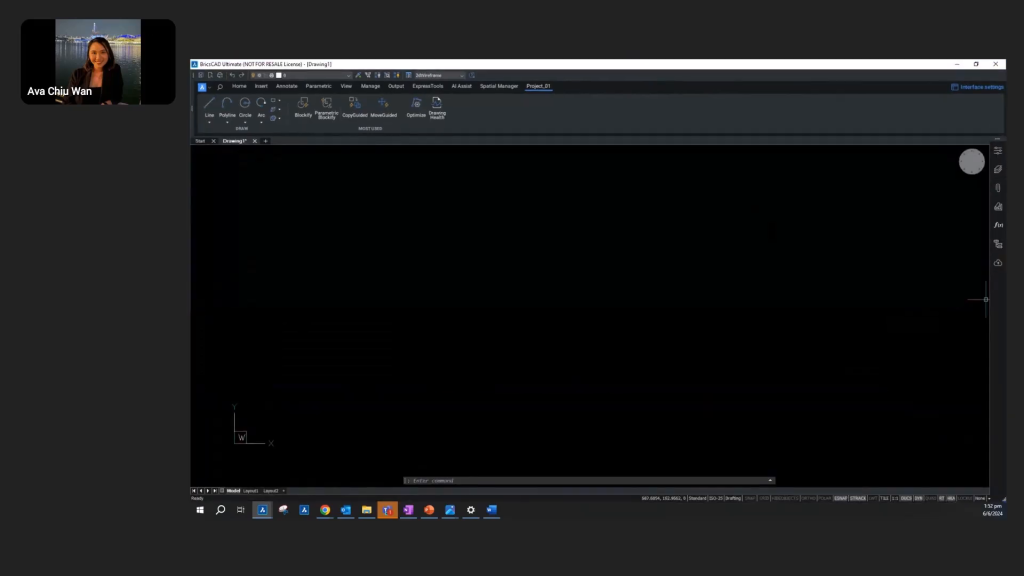

Step 6: Creating a Personalised Ribbon Tab

If you want to create a dedicated ribbon tab for your most-used tools, follow these steps:

1. In the CUI dialog box, go to the “Ribbon” section.
2. Click “Append Ribbon Tab” and name it, for example, “Project Tools.”
3. Add panels and buttons as you did in previous steps, selecting the commands that you frequently use.

Step 7: Save and Share Your Customisations

Once you’ve made all your desired customisations, save your CUI file. You can also share your customised settings with team members to ensure consistency across your organization:

1. In the CUI dialog box, click on “Save As” to save your customisations.
2. Share the saved CUI file with colleagues by providing them the file directly or placing it in a shared directory.

Step 8: Finalizing Your Customisation Process

After completing the customisation process, take some time to explore your new setup:

• Test all new buttons and commands to ensure they work as expected.
• Adjust any settings that may still need fine-tuning based on your workflow.
• Consider documenting your setup for future reference or for onboarding new team members.

Conclusion

Customising your BricsCAD interface can significantly improve your workflow and productivity. By following these steps, you can create a tailored environment that suits your specific needs. Whether you are migrating from another CAD software or starting fresh, the customisation options available in BricsCAD allow you to optimize your design process effectively.
